Charge EVs faster for more electric miles
Charging Redefined

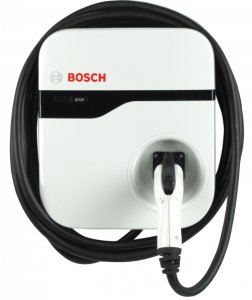

The Bosch EV200 series is the manufacturer-recommended Level 2 240V charging stations for multiple electric vehicle manufacturers in North America. Bosch EV200 chargers are available in multiple power output and charging cable length options to meet your charging needs. A minimalist, compact design and user-friendly operation easily integrate to your home.
Installation
Bosch recommends working with an experienced electrician to install your new charging station. Looking for an electrician? Visit the Bosch installer map for a recommendation. Ask your electrician to install a 40-amp breaker (20-Amp for the 16A EV210) wire and conduit, needed to install a charging station. Once your electrician finishes you'll be ready for charging.The EV200 series is designed to be hardwired only.
Charge Anywhere
The charging stations are built to exceed NEMA 3R standards, making it weather-resistant and suitable for indoor or outdoor installation. It will safely charge in rain, snow, sleet and ice or in the comfort of your garage.
Control Your Charge
Use your vehicle infotainment system or your vehicle’s app to set delayed charging, view vehicle battery and charging status and manage your charging station.
| SKU: | EL-51253-A |
| Plug-In: | No |
| Hardwired: | Yes |
| Cord Length: | 18 feet |
| Dimensions: | 16” L x 14” W x 5” D |
| Amperage: | 30 |
| Voltage: | 208 VAC – 240 VAC |
| Input/Output Power: | 7.2 kW |
| Input Current: | 30 amps |
| Breaker Size: | 40 amps |
| Connector/Cable: | SAE J1772 |
| Mounting: | Wall mount or pedestal |
| Weight: | 14 lbs |
| Temperature Rating: | -22°F to +122°F |
| Enclosure: | NEMA Type 3R; indoor/outdoor rated |
| Warranty: | 3 Years |
0 Reviews
Installation Manual
